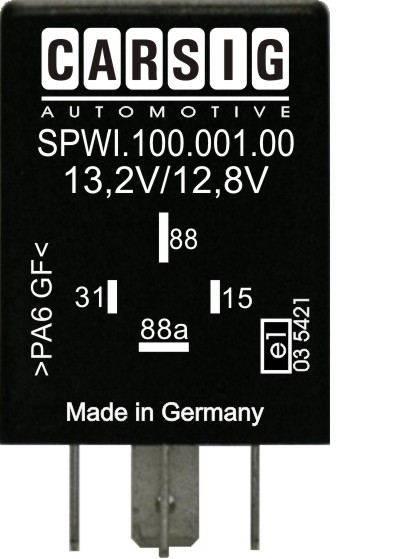

SPWI.100.001.00
Voltage monitor 12V
Voltage monitor 12V If the input voltage exceeds 13.2V, the relay switches on after 60s, if it falls below 12.8V, the relay switches off after approx. 1s.
| technical data | |
|---|---|
| Operating voltage | 9V-15V |
| Voltage | 12V |
| Width [mm] | 30 Millimeter |
| Height [mm] | 50 Millimeter |
| Length [mm] | 30 Millimeter |

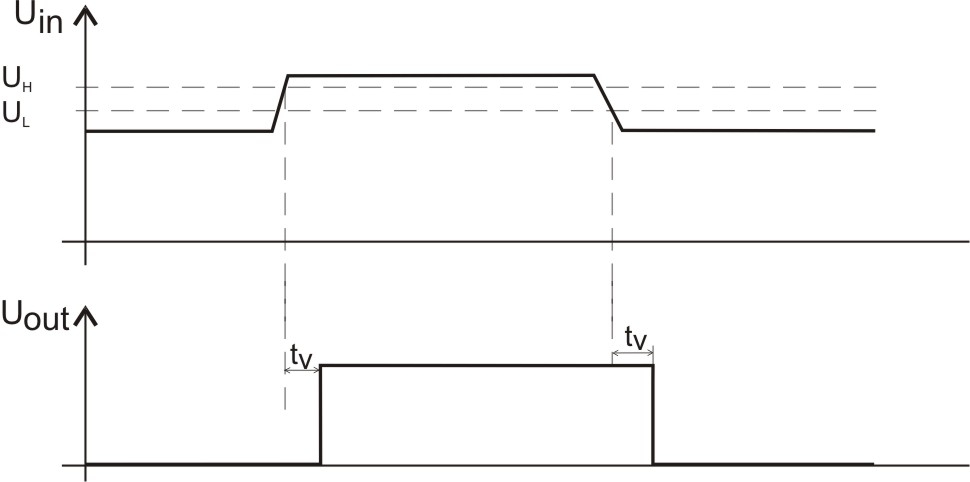

function diagram
schematic

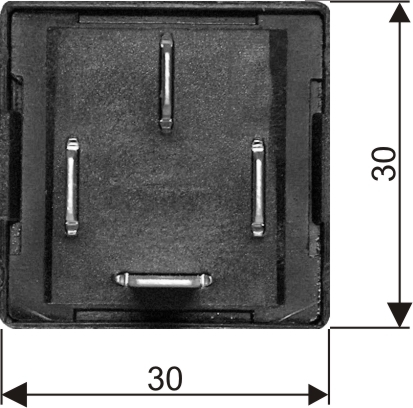

measurements
