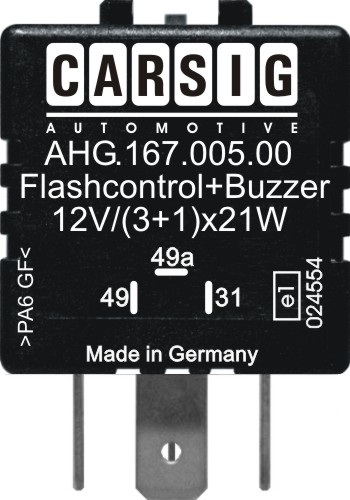

AHG.167.005.00

Flash control with C2 buzzer for trailer operation, integrated buzzer instead of C2 lamp, Japan socket connection.

Das Flashcontrol überwacht die Fahrzeug Blinklampen sowie die des Anhängers. Wird eine vierte Blinklampe 21W erkannt, so wird das durch den Buzzer signalisiert. Bei Unterschreitung von zwei Blinklampen wird eine höhere Blinkfrequenz erzeugt.

technical data
Output Current (3+1)*21W +5W
Operating voltage 9-30V
Width [mm] 30 Millimeter
Height [mm] 30 Millimeter
Length [mm] 30 Millimeter
Voltage 12V

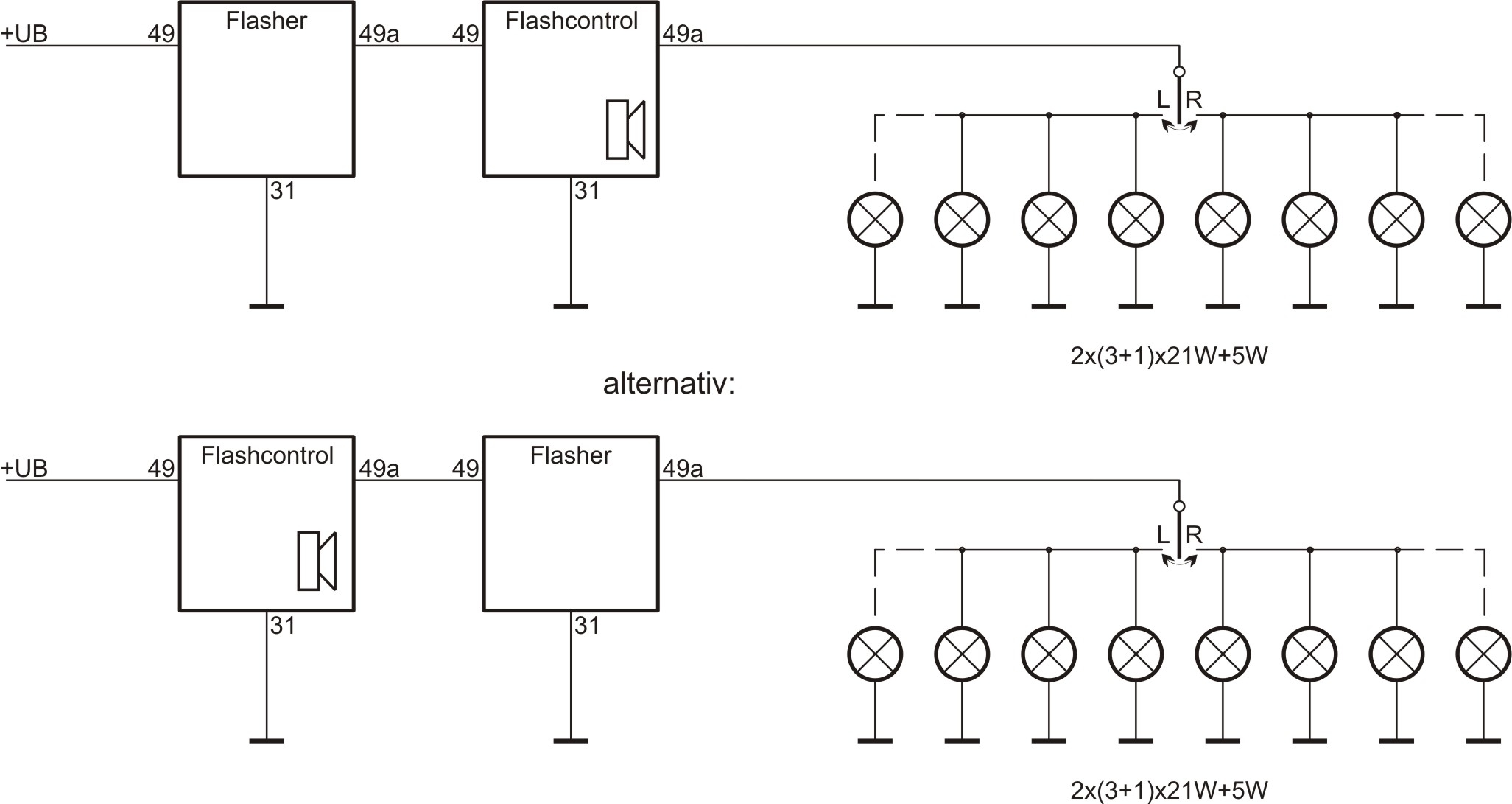

schematic

measurements
