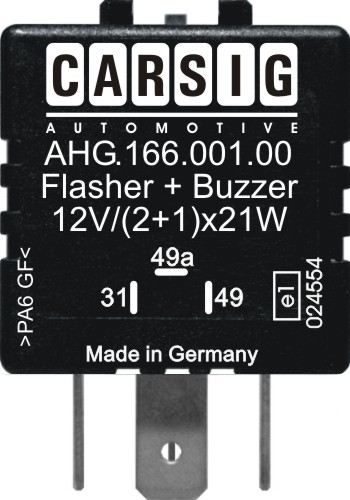

AHG.166.001.00

Flasher 12V with C2 buzzer for trailer operation, integrated buzzer instead of C2 lamp, EU socket connection.

The flasher unit monitors the vehicle's flashing lights and those of the trailer. If a third flashing lamp 21W is recognized, this is signaled by the buzzer. If two flashing lights are undershot, a higher flashing frequency is generated.

technical data
Output Current (2+1)*21W +5W
Operating voltage 9V-15V
Width [mm] 30 Millimeter
Height [mm] 30 Millimeter
Length [mm] 30 Millimeter
Voltage 12V

schematic

measurements
