BEL.260.000.00

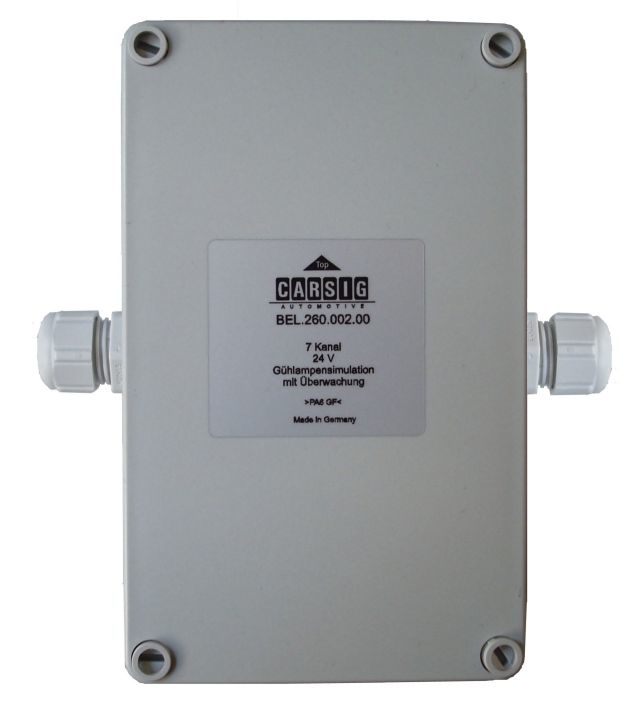

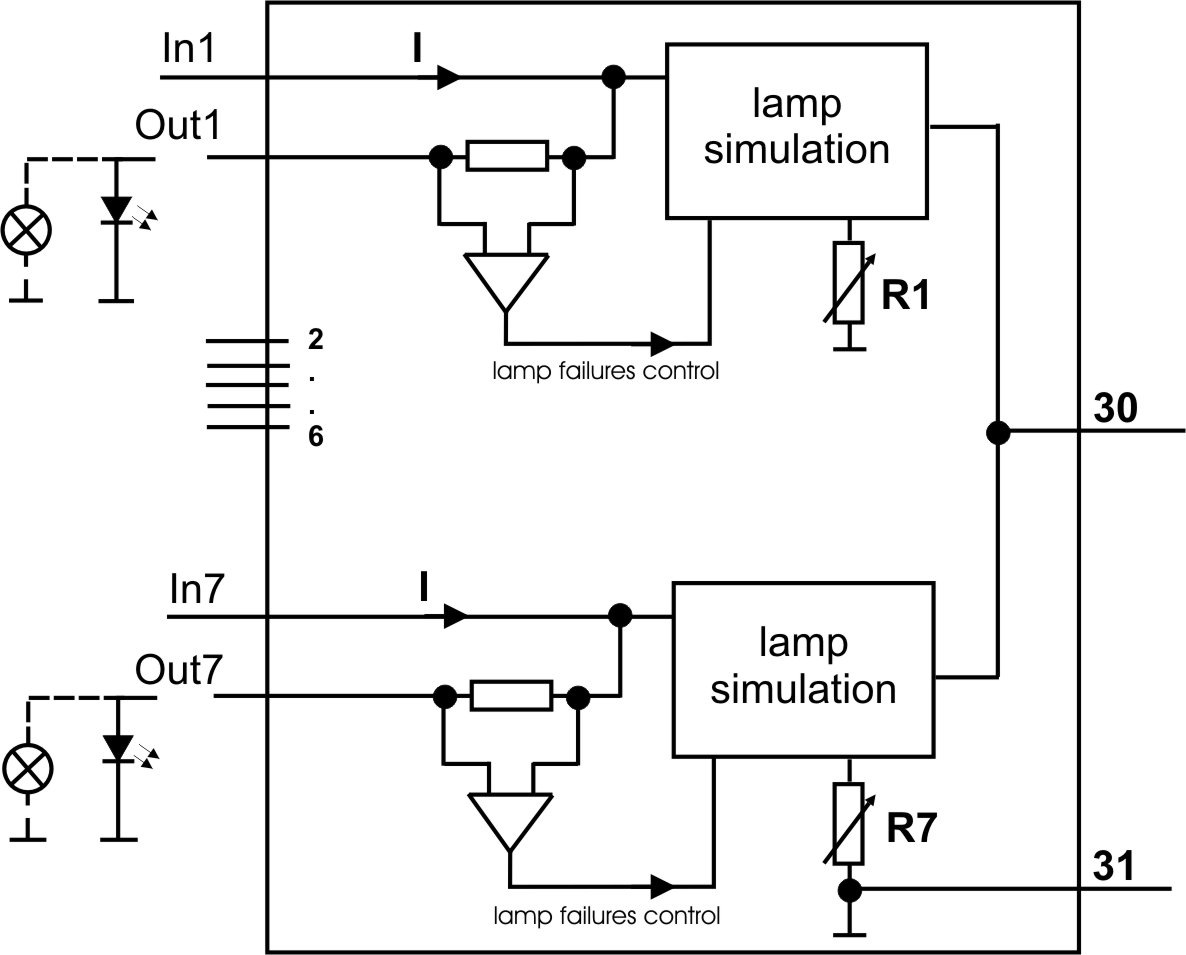

The lighting module is used to simulate electronic loads such as light bulbs. Output monitoring can be used to signal the failure of an LED or other load to the chassis. Thanks to the patented process, the assembly is characterized by low heat generation.
-
technical data | |
---|---|
Operating voltage | 18V-30V |

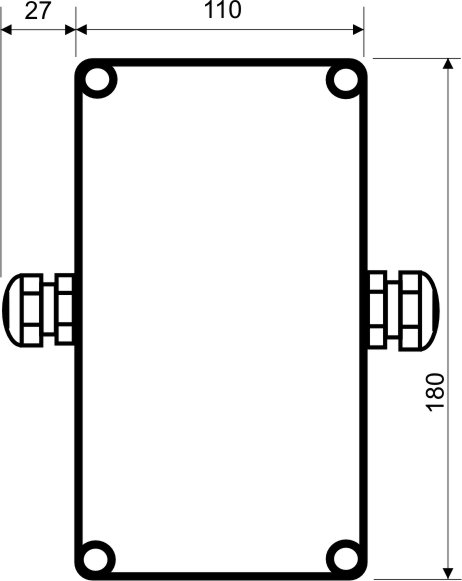

Width [mm] | 120 Millimeter |

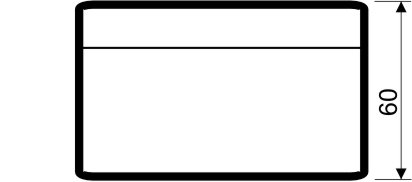

Height [mm] | 10 Millimeter |
Length [mm] | 170 Millimeter |
Voltage | 24V |
