BEL.120.001.00

The lighting module is able to simulate an electronic load by requiring a constant current at the input LI or RI. The electricity is then fed back to the grid via 30. As a result, the assembly produces only a small amount of heat. The current can be adjusted using a potentiometer

technical data
Operating voltage 9V-15V
Width [mm] 60 Millimeter
Height [mm] 30 Millimeter
Length [mm] 60 Millimeter
Voltage 12V

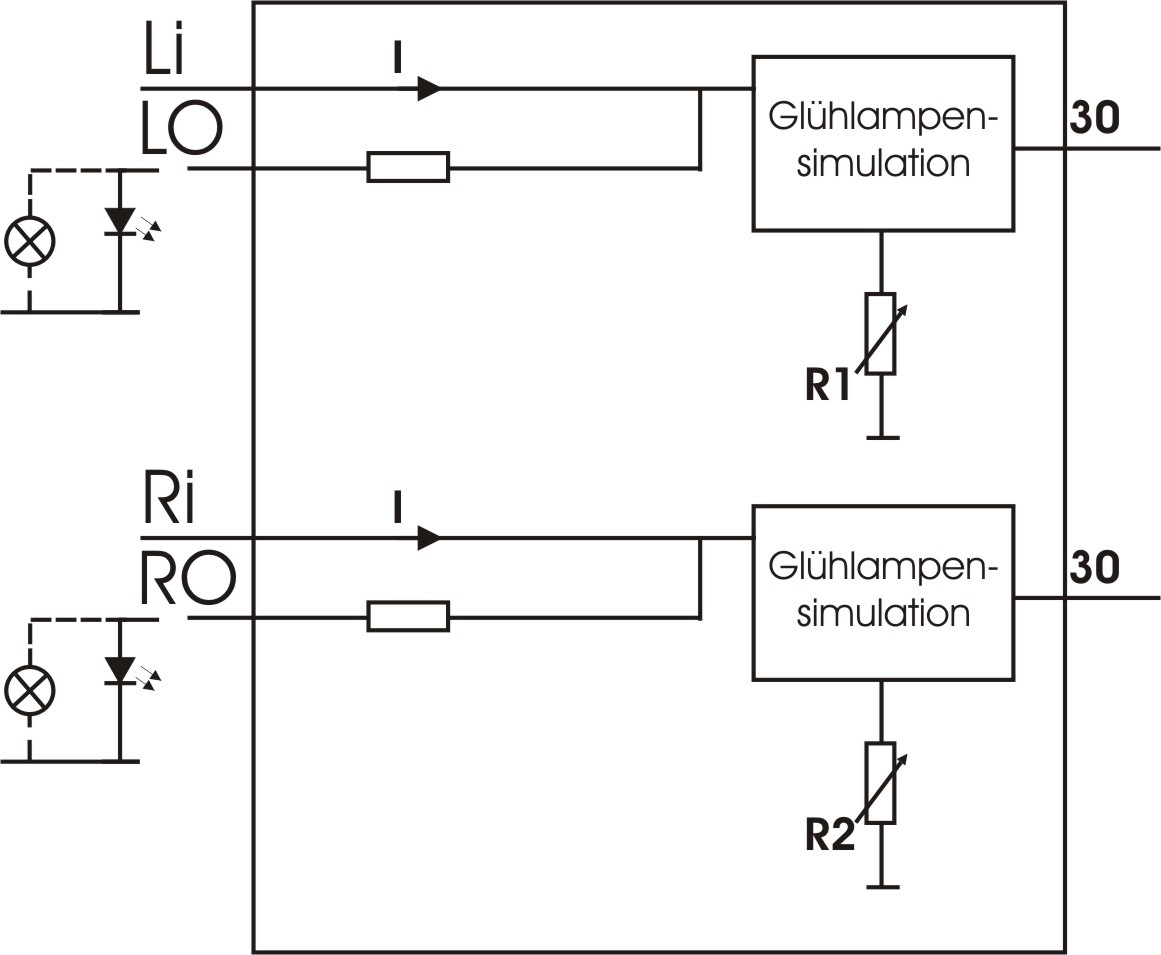

schematic

measurements
