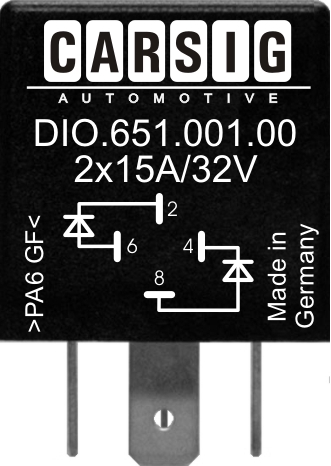

DIO.651.001.00
Diode combination with 2 single diodes. The diodes are not connected with each other. Anode and kathode of the diodes are accessible via blade terminals. Used for commutating diodes, headlamps, logical links.
| technical data | |
|---|---|
| Reverse voltage | 32V |
| Current | 15A |
| Length [mm] | 30 Millimeter |
| Width [mm] | 30 Millimeter |
| Height [mm] | 30 Millimeter |

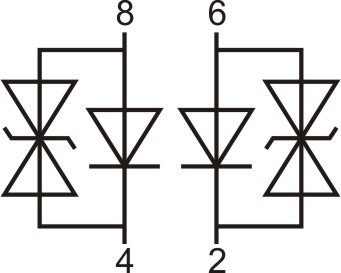

schematic
measurements
