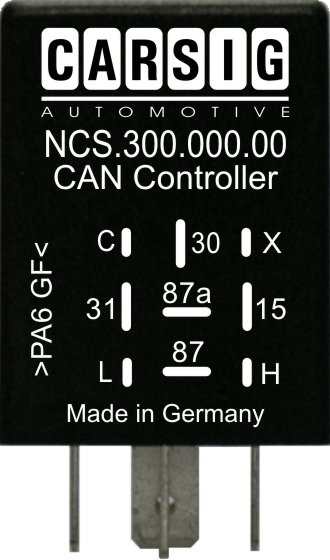

NCS.300.000.00
Multifunction CAN controller suitable for automotive and PLC applications.
Possibility of customer-specific programming using the graphical programming interface CarsGraf©.
The functions are freely programmable.
Inputs: 1 digital / 2 analog (0-10V, 10bit)
Outputs: 1x HSD 2A / 1x PWM proportional controller (current control) 0.5A
| technical data | |
|---|---|
| Voltage | 12V/24V |
| Operating voltage | 9-30V |
| Number of inputs | 3 |
| Additional output | 2 |
| Tab | Optional |
| Length [mm] | 30 Millimeter |
| Width [mm] | 30 Millimeter |
| Height [mm] | 40 Millimeter |
schematic
measurements
